MicoAir LR900-P 915MHz LoRa Telemetry Radio for Pixhawk / ArduPilot / PX4 — 1W FHSS, Flagship Long Range (Pair)

📘 Documentation & Guides

• LR900 Series — Full User Manual — specs, model comparison, interfaces and every configurable parameter
• ArduPilot — Telemetry Setup Guide · PX4 — Telemetry Setup Guide
• CP2102 Driver Installation (Windows) — the one-time step before the radio shows up as a COM port

Overview

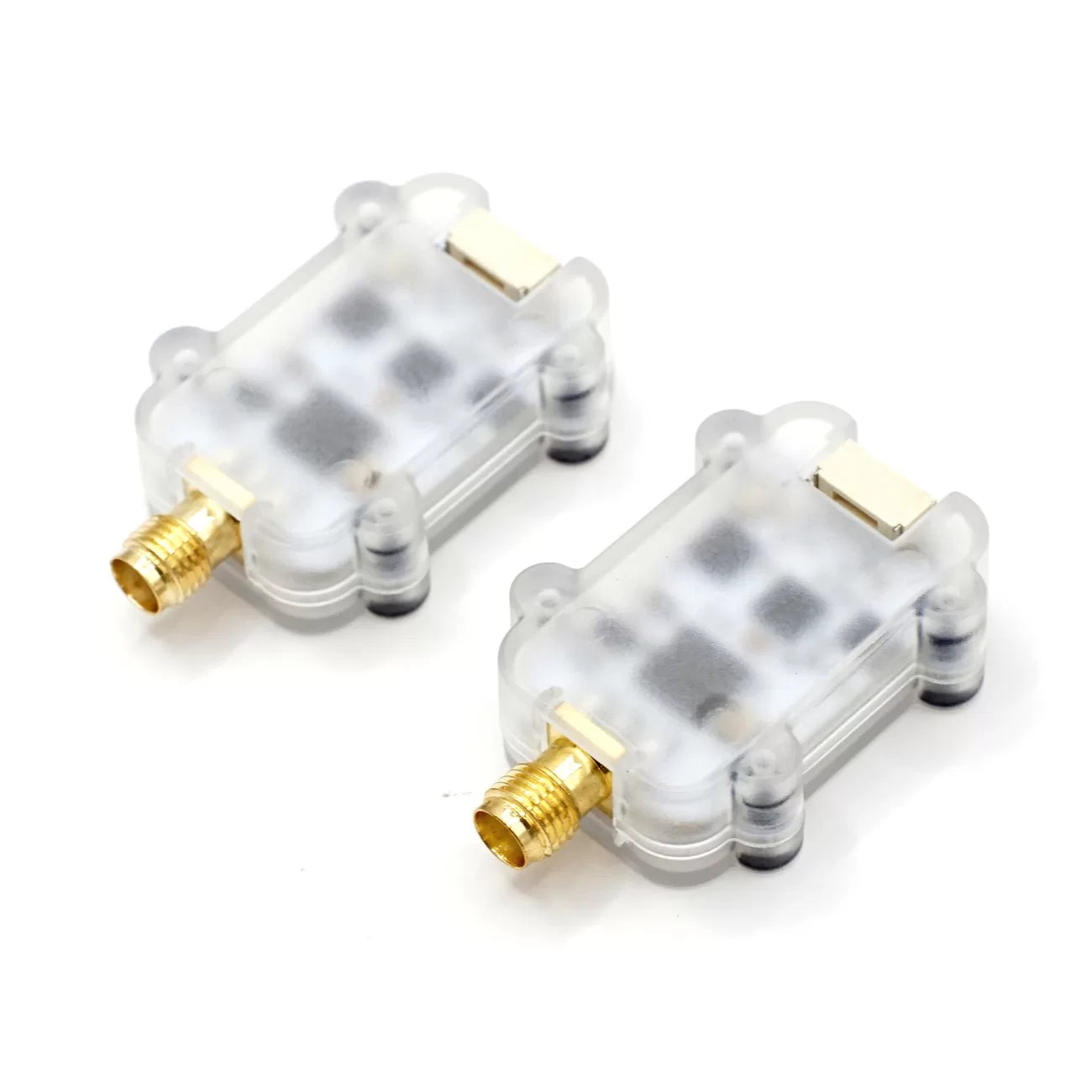

The LR900-P is the flagship of the LR900 family: a full 1 W (1000 mW) of transmit power — double the LR900-F — wrapped in a protective translucent enclosure. It's a plug-and-play MAVLink telemetry link for Pixhawk-standard flight controllers running ArduPilot or PX4: live HUD, parameter tuning and mission upload in Mission Planner or QGroundControl, at ranges where WiFi and Bluetooth gave up long ago. LoRa spread-spectrum modulation plus FHSS frequency hopping keep the link solid through interference, and transparent serial passthrough also makes it a clean RTK base–rover data link.

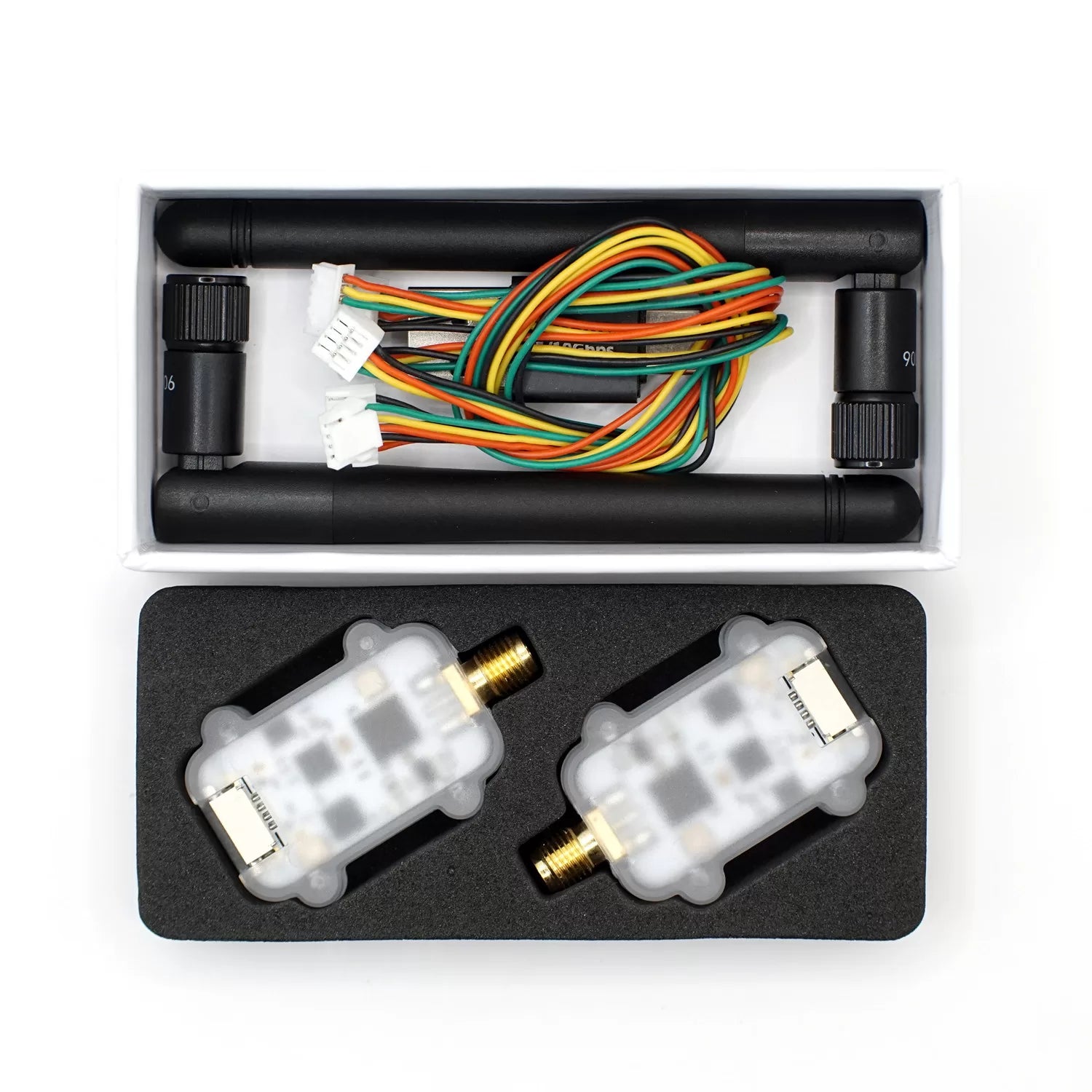

Sold as a complete pair — air unit, ground unit, antennas, cables and USB adapter. Plug one into the flight controller, one into your laptop or ground station, done.

Features

• 890–915 MHz band, LoRa modulation + FHSS frequency hopping
• 1000 mW transmit power — the highest in the LR900 series
• Up to 3.2 KB/s transparent throughput (FHSS downlink), 8 KB max serial packet
• Protective injection-molded enclosure with mounting tabs
• USB-C on board (CP2102) — ground-side connection and configuration without extra adapters
• Transparent serial: ArduPilot, PX4, RTK base–rover, or any UART device
• Average power consumption ~2 W — supply from a 5 V source able to deliver it

Which LR900?

• LR900-P (this one): 1 W, enclosure, maximum range and throughput — the long-range flagship
• LR900-F: 500 mW — the proven mid-range pick
• LR900-A: 160 mW budget pair for bench and short-range work

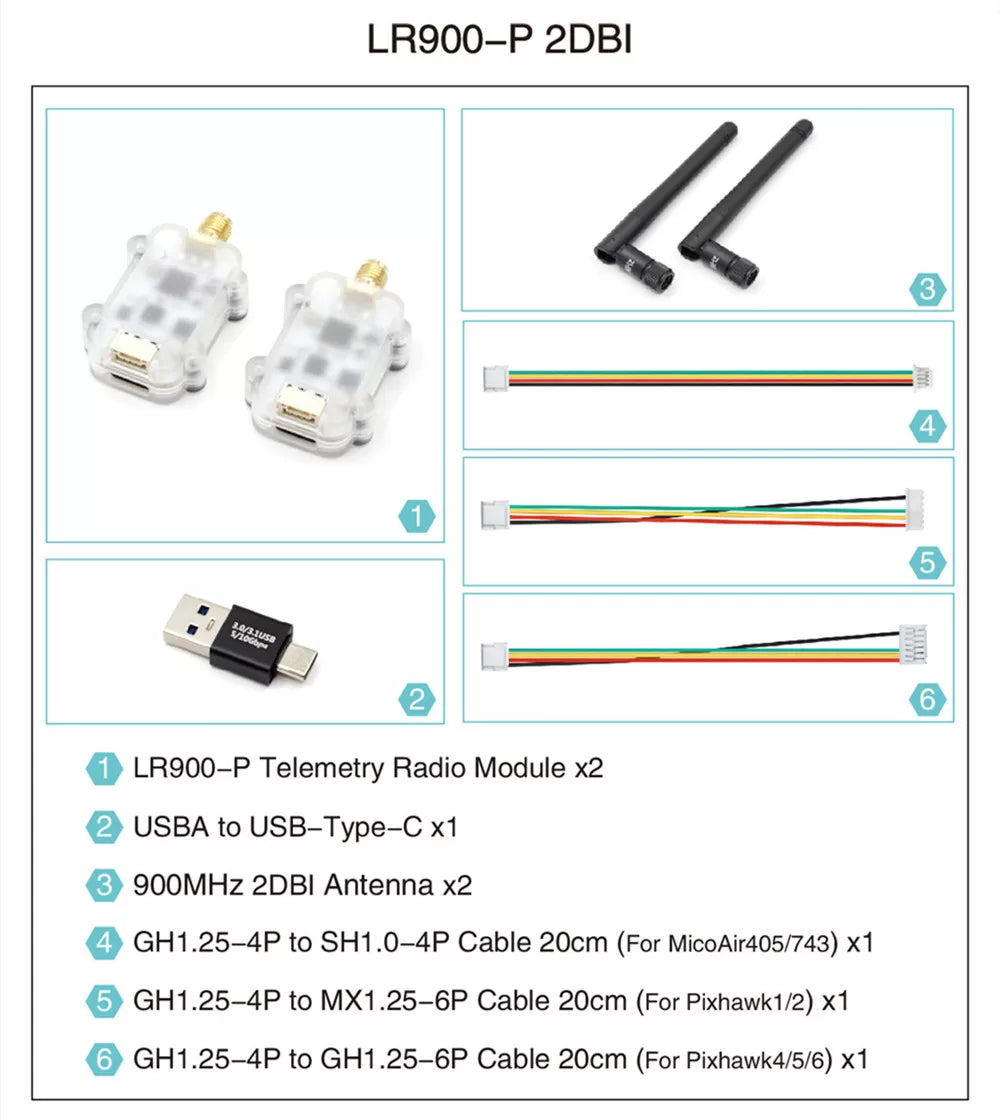

Package list

• LR900-P telemetry radio module × 2
• 900 MHz 2 dBi antenna × 2
• USB-A to USB-C adapter × 1
• GH1.25-4P to SH1.0-4P cable 20 cm × 1 (for MicoAir 405/743)
• GH1.25-4P to MX1.25-6P cable 20 cm × 1 (for Pixhawk 1/2)
• GH1.25-4P to GH1.25-6P cable 20 cm × 1 (for Pixhawk 4/5/6)

Regulatory note

The 902–928 MHz ISM band is license-free in North America; 1 W output is within the FCC/ISED ISM limits commonly applied to frequency-hopping devices. Operating rules vary elsewhere (e.g. 868 MHz regions) — you are responsible for compliance with local regulations.

Technical Support

Questions before or after your build? Email support@robofusion.net — we respond within 48 hours. First-line answers live at docs.robofusion.net.
