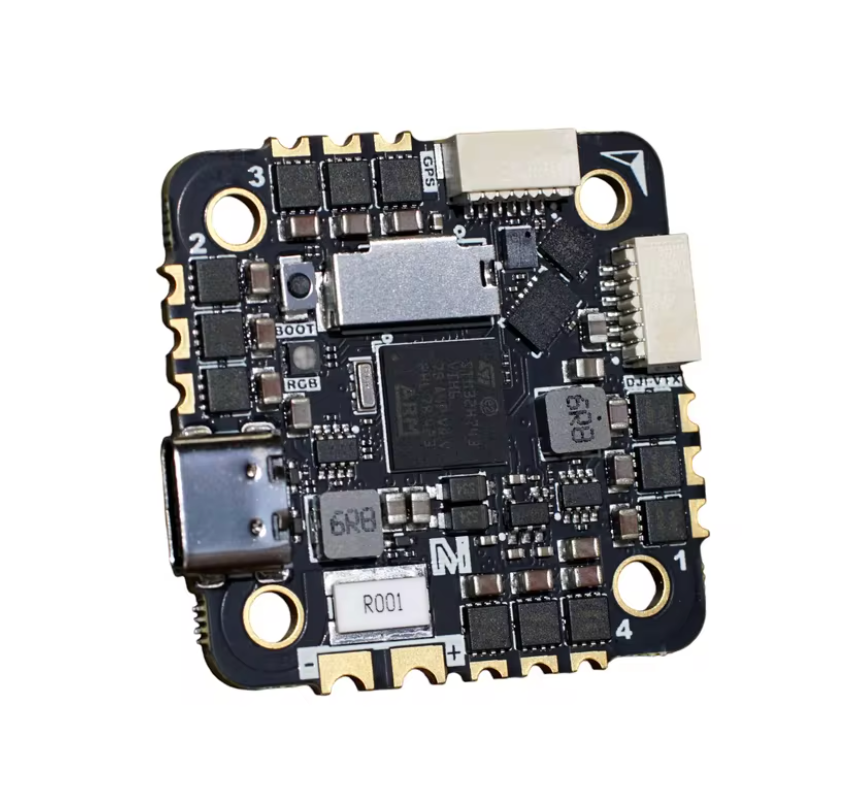

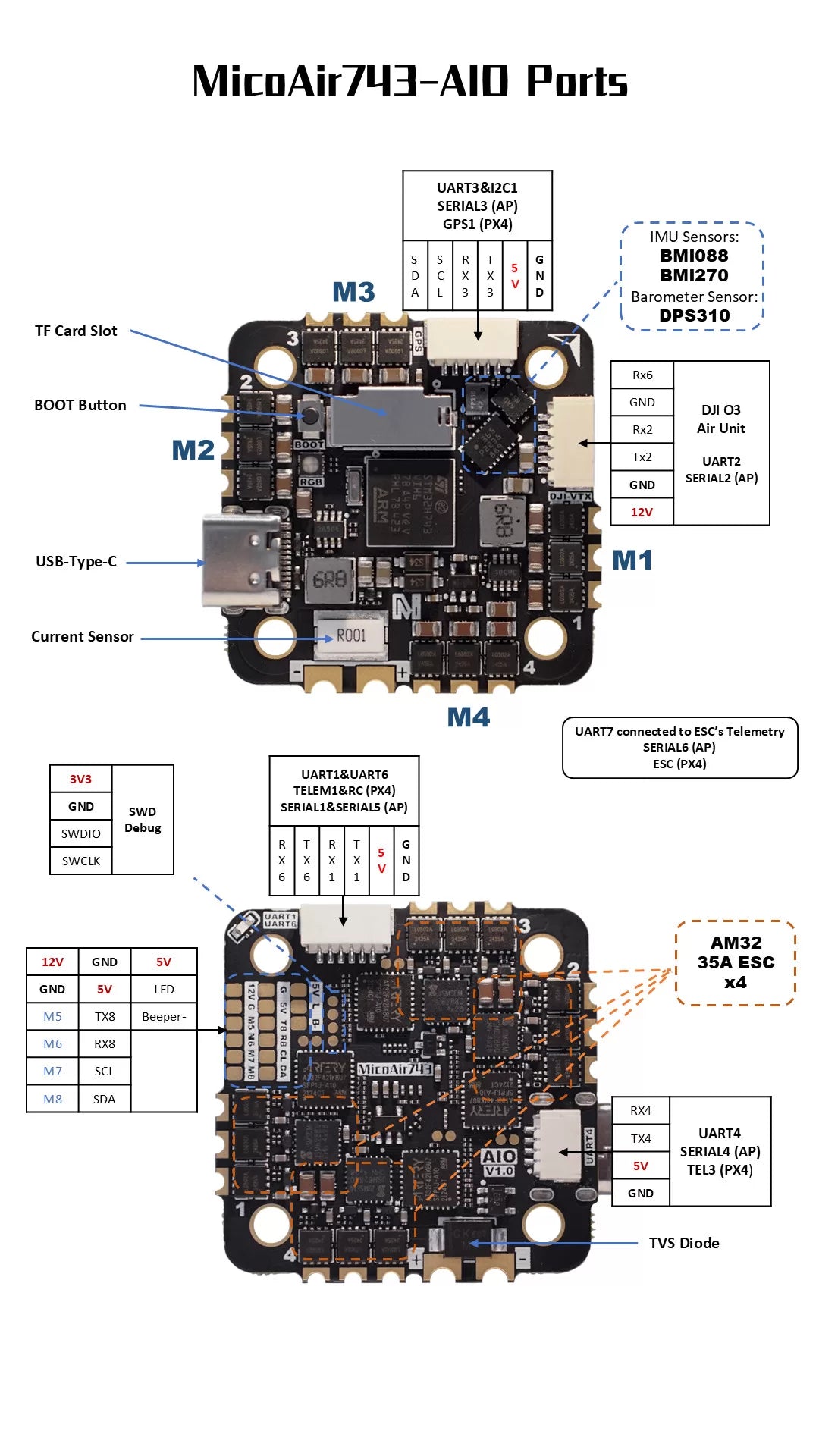

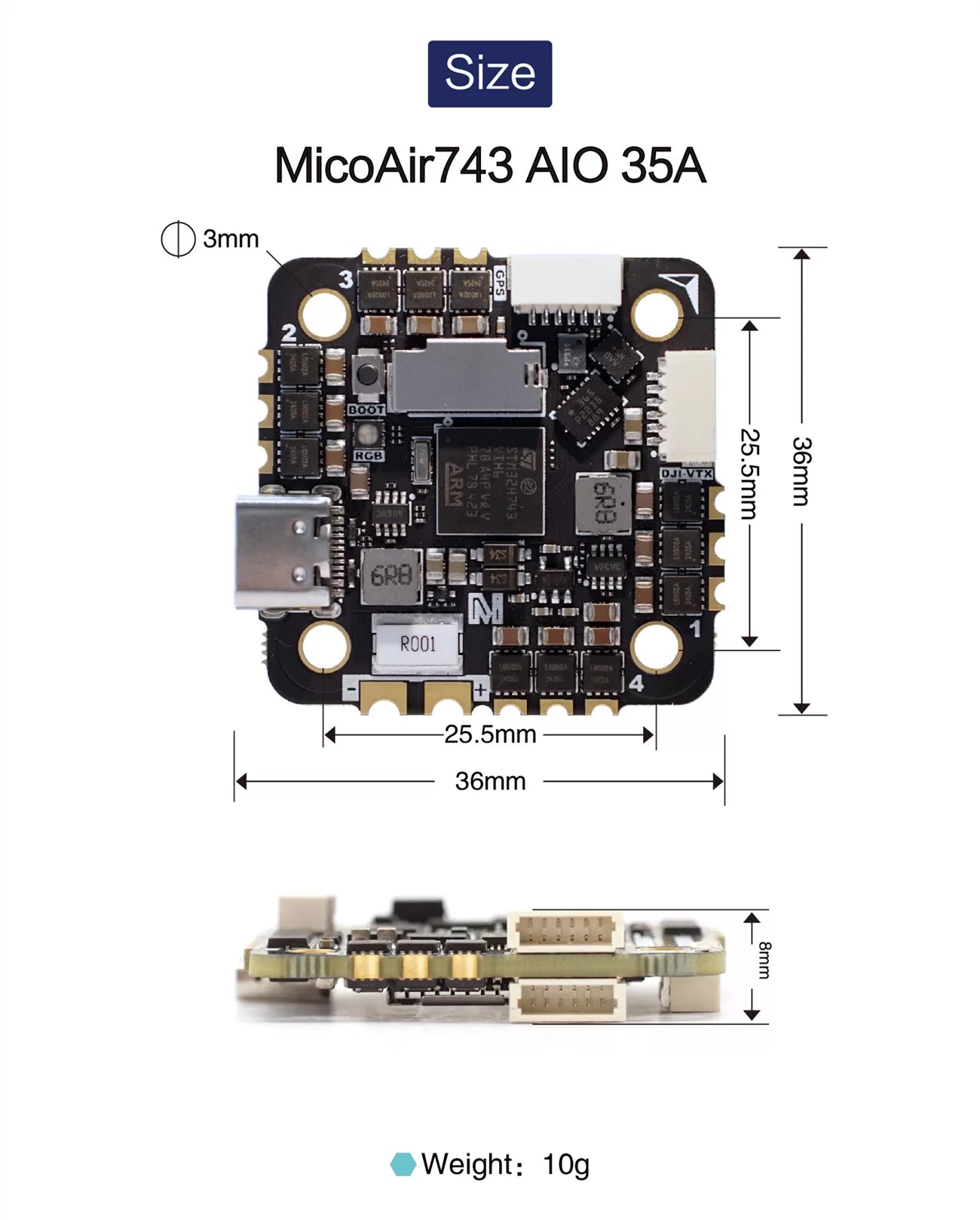

RC Input (Ardupilot)
The default RC input is configured on the UART6. The SBUS pin is inverted and connected to RX6. Non SBUS, single wire serial inputs can be directly tied to RX6 if SBUS pin is left unconnected. RC could be applied instead at a different UART port such as UART2, UART4 or UART8, and set the protocol to receive RC data: SERIALn_PROTOCOL=23 and change SERIAL5 _Protocol to something other than 23.
OSD Support (Ardupilot)
The MicoAir743-AIO supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).
VTX Support

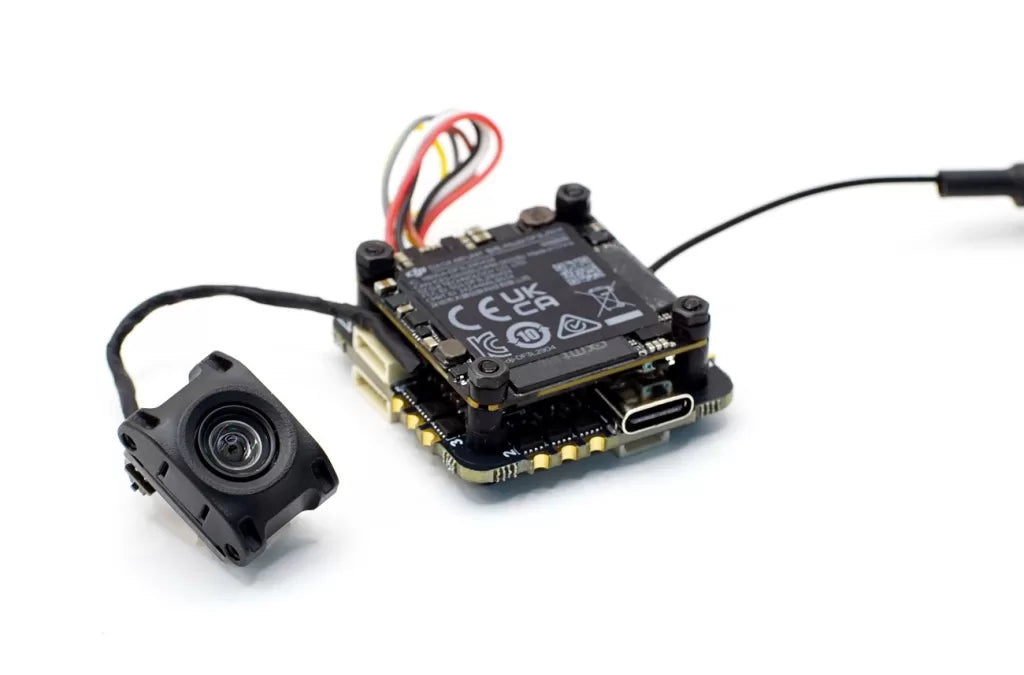

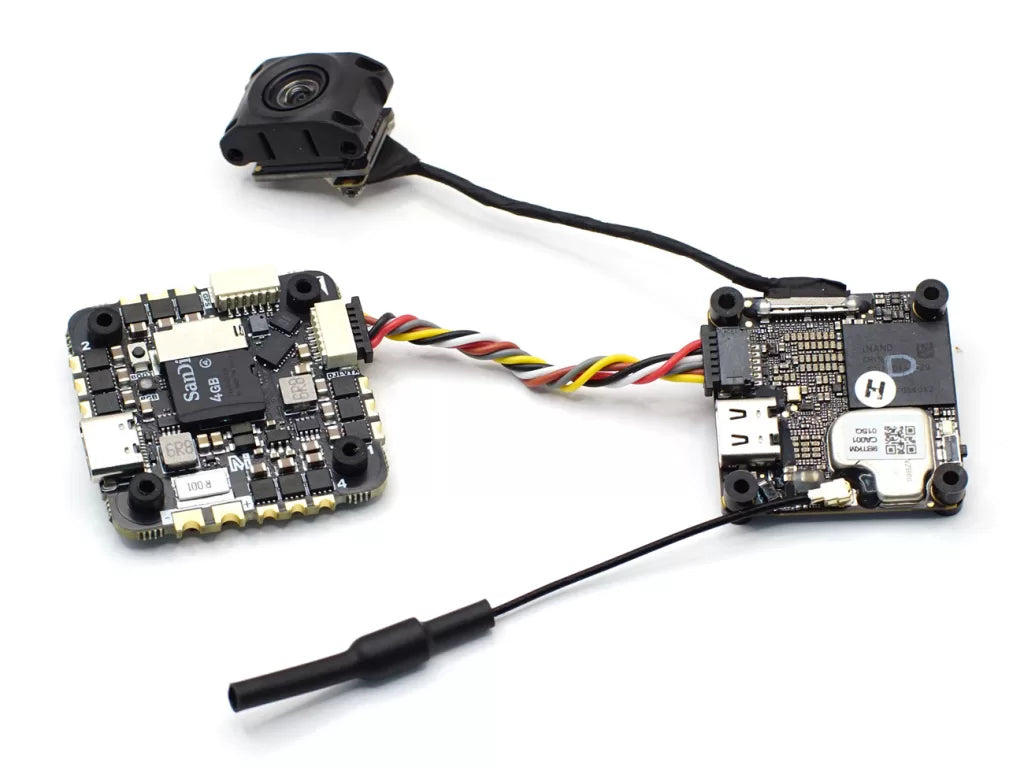

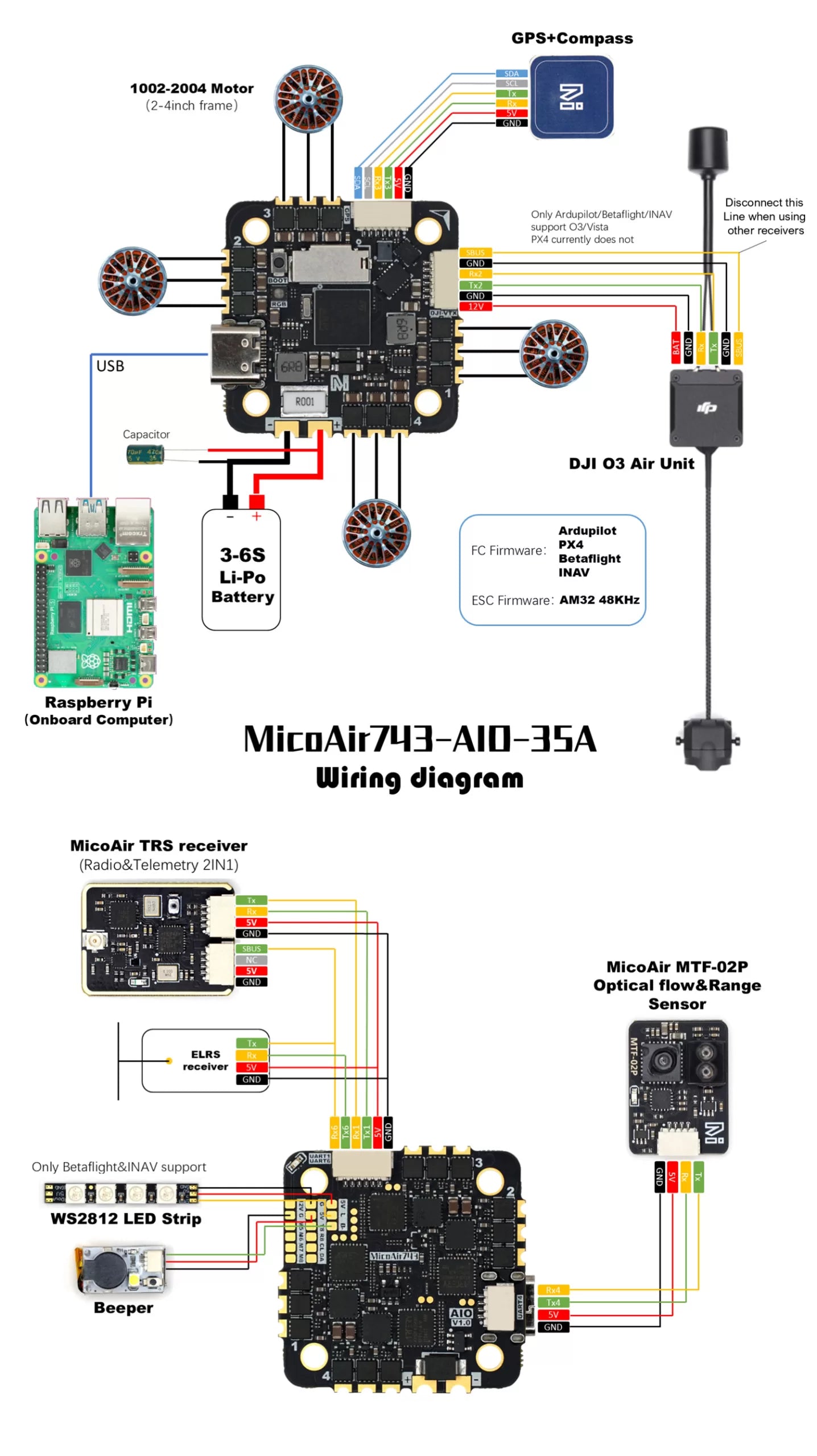

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.

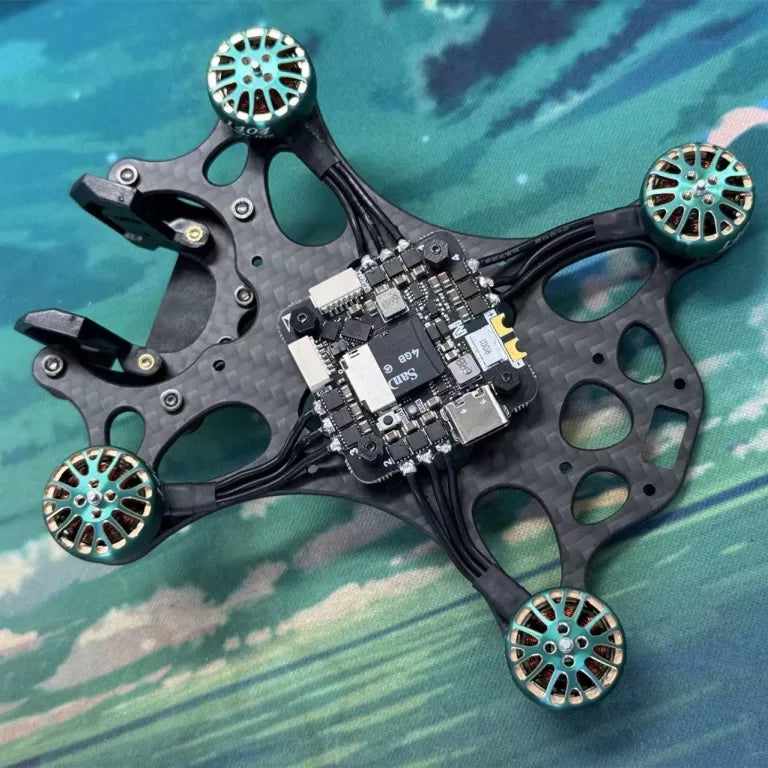

PWM Output
The MicoAir743-AIO supports up to 8 PWM outputs.
Channels 1-8 support DShot/bi-directional DShot.
(currently PX4&INAV not support BDShot function)
PWM output share grouped and every group must use the same output protocol:
1,2,3,4 are group 1
5, 6 are group 2
7,8 are group 3
Compass
The MicoAir743-AIO doesn’t have a built-in compass sensor, but you can attach an external compass using I2C on the SDA and SCL connector.
