MicoAir743v2 AIO Flight Controller

Please note: The default firmware pre-installed is ArduPilot.

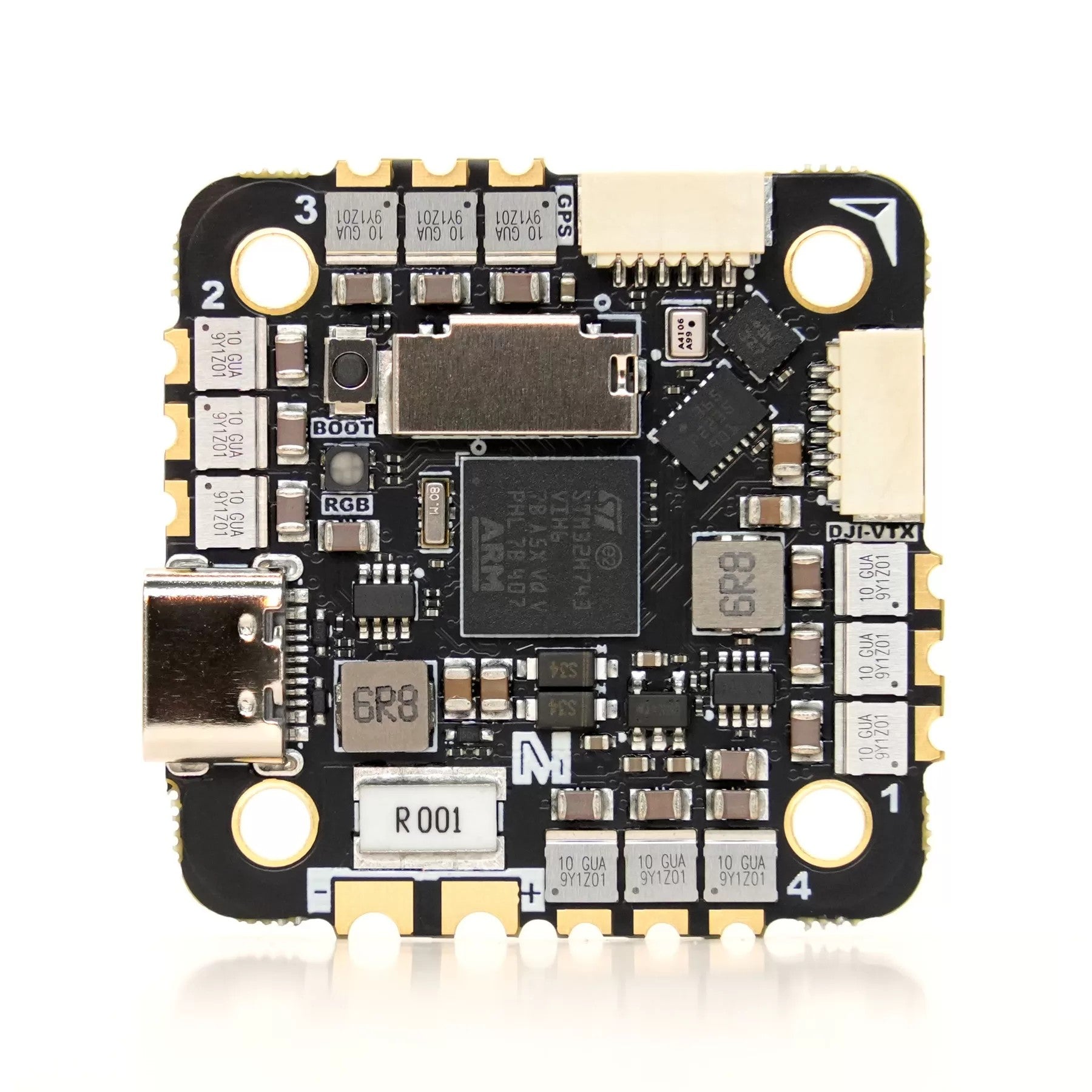

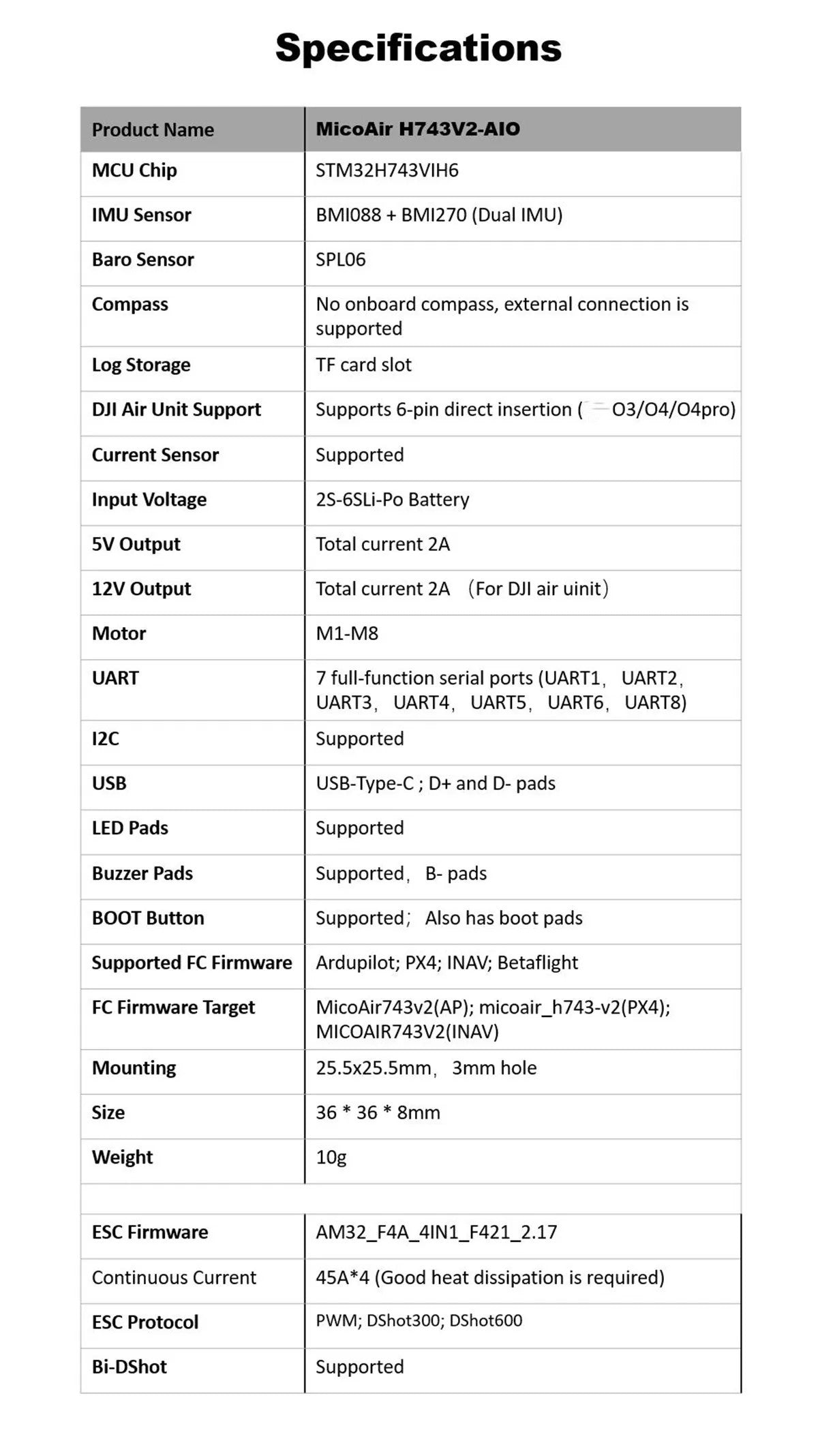

Flight Controller Specifications

• MCU: STM32H743VIH6, 480MHz, 2MB Flash
• IMU: BMI088 + BMI270
• Baro: SPL06
• TF Card Slot
• 7x UART
• 8x motor outputs (M1–M8) + LED strip output (PWM11)
• 1x I2C
• 1x SWD
• 2x ADC (VBAT, Current)
• 1x LED Strip
• 1x Beeper
• USB Type-C
• BEC 5V 2A output (for controller, receiver, GPS, optical flow or other devices)
• BEC 12V 2A output (for DJI O3/O4/O4 Pro)

ESC Specifications

• Firmware: AM32_F4A_4IN1_F421_2.19
• PWM Frequency: 48KHz
• ESC Protocol: PWM / DShot300 / DShot600 (support BDShot)
• Continuous Current: 45A × 4
• Voltage Support: 3-6S (approx. 10V - 27V)
• Tutorial: How to configure and update the on-board AM32 ESC

Battery Monitoring

• ArduPilot / PX4: voltage factor 21.12, current factor 14.14 (BATT_VOLT_MULT / BATT_AMP_PERVLT on ArduPilot)
• Betaflight / INAV: voltage scale 211, current scale 707

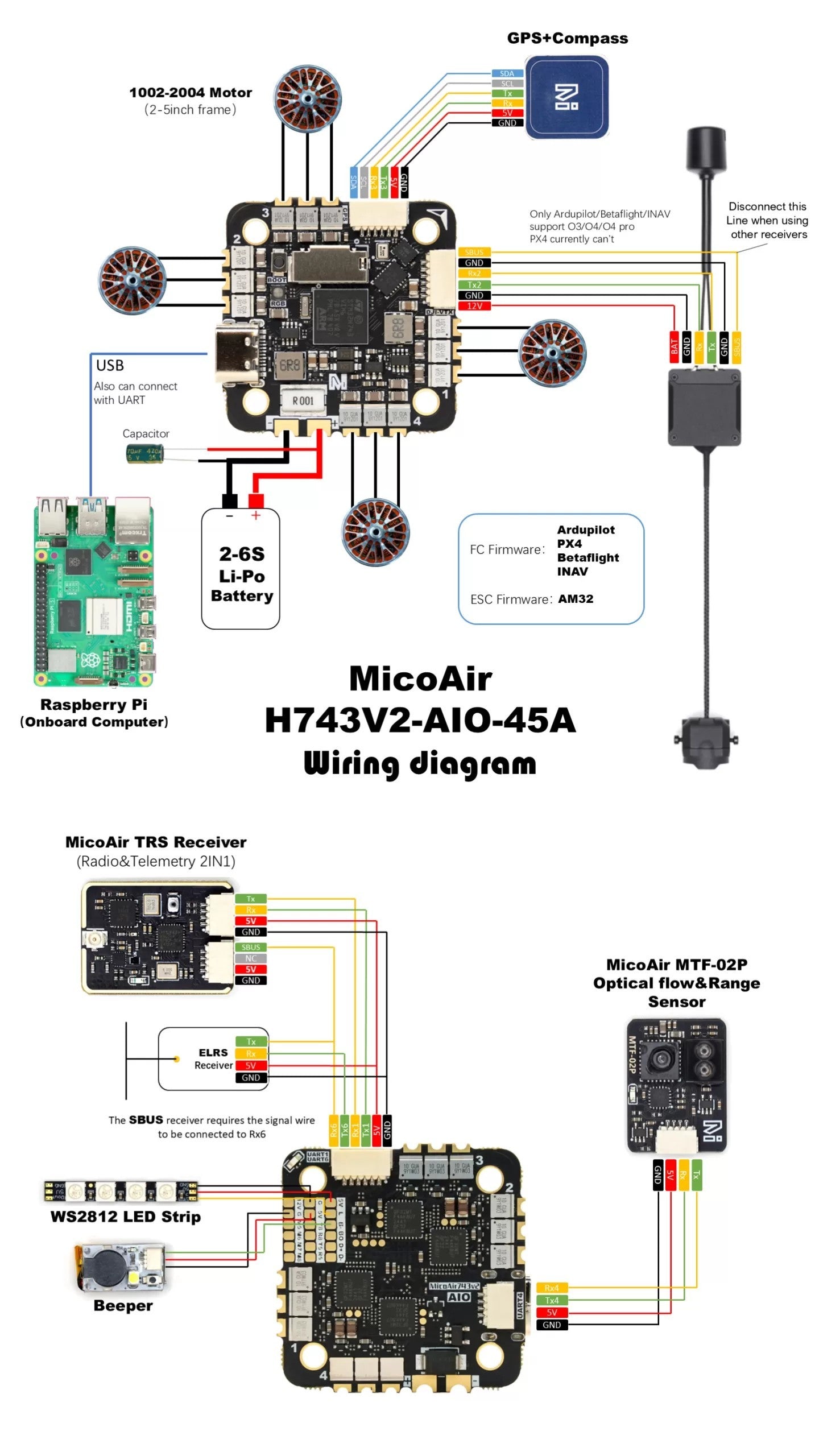

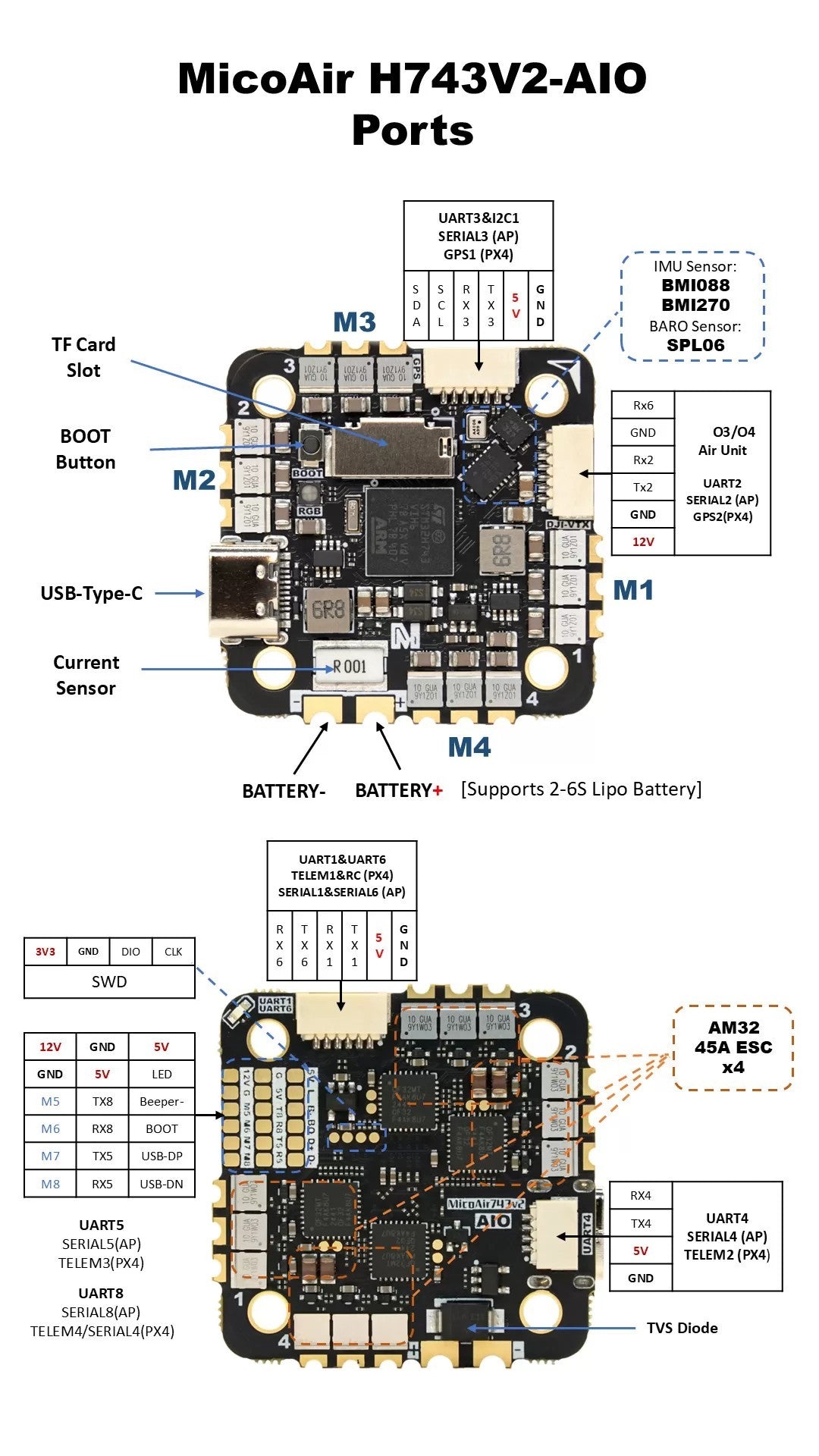

UART Mapping

Ardupilot:

• SERIAL0 → USB
• SERIAL1 → UART1 (MAVLink2, DMA-enabled)
• SERIAL2 → UART2 (DisplayPort, DMA-enabled)
• SERIAL3 → UART3 (GPS, DMA-enabled)
• SERIAL4 → UART4 (MAVLink2, DMA-enabled)
• SERIAL5 → UART5 (DMA-enabled)
• SERIAL6 → UART6 (RCIN, DMA-enabled)
• SERIAL8 → UART8 (DMA-enabled)

PX4:

• ttyACM0 → USB
• ttyS0 → TELEM1 → UART1
• ttyS1 → GPS2 → UART2
• ttyS2 → GPS1 → UART3
• ttyS3 → TELEM2 → UART4
• ttyS4 → TELEM3 → UART5
• ttyS5 → RC → UART6
• ttyS7 → TELEM4/SERIAL4 → UART8

RC Input (Ardupilot)

The default RC input is configured on UART6. The SBUS pin is inverted and connected to RX6. Non-SBUS, single-wire serial inputs can be tied directly to RX6 if the SBUS pin is left unconnected. RC can also be used on UART2, UART4, or UART8 by setting SERIALn_PROTOCOL=23 and changing SERIAL6_PROTOCOL to a different value.

OSD Support (Ardupilot)

Supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).

VTX Support

SH1.0-6P connector supports DJI Air Unit / HD VTX connection (DisplayPort protocol). Pin 1 supplies 12V — ensure compatibility before connecting devices that require 5V.

PWM Output

Eight motor outputs (M1–M8). The LED pad is PWM11 in firmware, so the firmware may report up to 9 PWM resources.

• Channels 1–8 support DShot and bi-directional DShot (BDShot)
• Note: PX4 & INAV currently do not support BDShot

Output Groups:

• Group 1: PWM 1, 2, 3, 4
• Group 2: PWM 5, 6
• Group 3: PWM 7, 8, 11 (Note: PWM11 is LED. If used for serial LED, PWM7 and PWM8 must also be used for LEDs)

Compass

No built-in compass. External compass can be connected via I2C on SDA/SCL.

Physical

• Mounting: 25.5 × 25.5mm, Φ3mm
• Dimensions: 36 × 36 × 8mm
• Weight: 10g

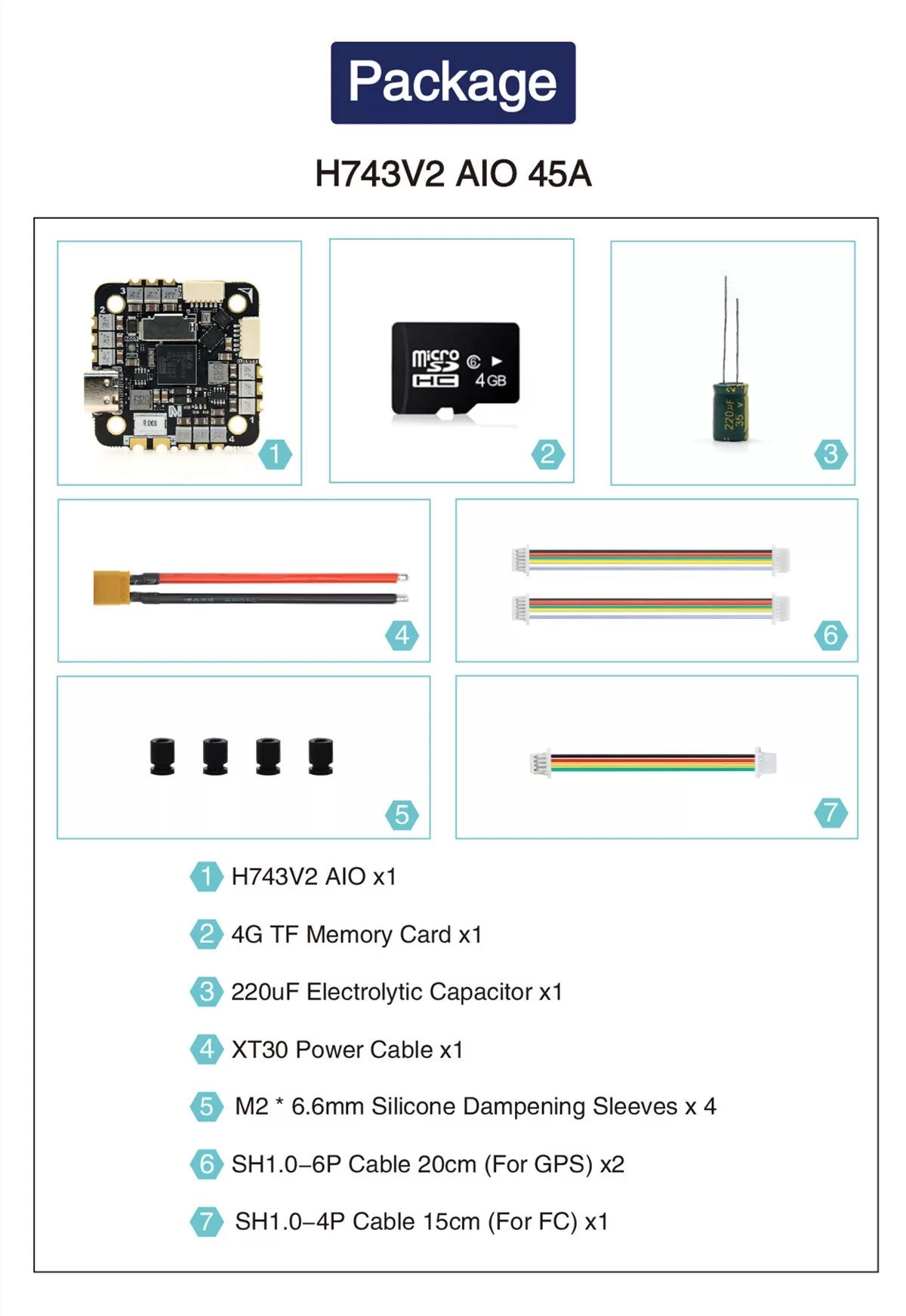

Package Includes

• H743V2 AIO (Ardupilot firmware） ×1
• 4G TF Memory Card ×1
• 220uF Electrolytic Capacitor ×1
• XT30 Power Cable ×1
• M2 × 6.6mm Silicone Dampening Sleeves ×4
• SH1.0-6P Cable 20cm (For GPS) ×2
• SH1.0-4P Cable 15cm (For FC) ×1
